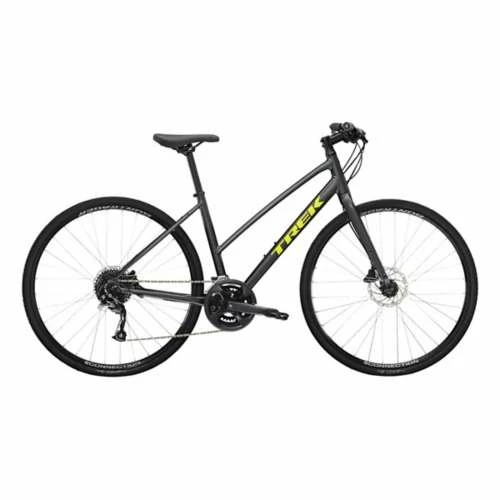

Boasting 18 speeds and a wide range of gearing, the Trek 2022 FX 2 Disc Stagger Bike gives you the ability to find the sweet spot between pedaling too hard and too soft. Another highlight of the FX 2 Disc Stagger has hydraulic disc brakes that offer premium stopping power in wet or muddy conditions. Plus, the cables are routed internally, which protects them from the elements and adds to the bike’s sleek look. Whether you are a competitive or recreational rider, the Trek 2022 FX 2 Disc Stagger Bike is a great choice for you.
Features:
- Rack & fender ready – Built-in mounts make it easy to add racks and fenders for added versatility.
- Hydraulic disc brakes – Hydraulic disc brakes offer the absolute strongest stopping power in all conditions, including wet and muddy.
- Internal cable routing – We route shift and brake cables through the frame to keep things clean and simple. And it looks great, too.
- Blendr stem – Bontrager Blednr stem technology lets you clip your gear directly to the stem for clean looks, maximum user-friendliness.
- DuoTrap S compatible – DuoTrap S (Sold Separately) integrates a Bluetooth/ANT+ sensor into the frame. Log routes and track fitness progress on your computer or smartphone with no external sensor. Works with all major ANT+ wireless players, including Bontrager, Garmin, PowerTap, and SRM.
- Stagger frame – Easy-on, easy-off step-through frame is perfect for anybody not interested in slinging a leg over the top tube.
Specs:
Frameset:
- Frame Alpha Gold Aluminum, stagger top tube, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
- Fork FX Alloy, flat mount disc, rack mounts, 405mm axle-to-crown, ThruSkew 5mm QR
Wheels:
- Hub front – Formula DC-20, alloy, 6-bolt, 5x100mm QR
- Hub rear – Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
- Rim – Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
- Tire – Bontrager H2 Comp, wire bead, 30tpi, 700x35c
- Max tire size – 38c without fenders, 35c with fenders
Drivetrain:
- Shifter
- Size: S, M, L – Shimano Altus M2010, 9 speed
- Size: S, M, L – Shimano Altus M2010, 2 speed
- Front derailleur – Shimano Acera T3000, 34.9mm clamp, top swing, dual pull
- Rear derailleur – Shimano Altus M2000, long cage
- Crank – Forged alloy, 46/30, chainguard, 170mm length
- Bottom bracket – Sealed cartridge, 68mm
- Cassette – Shimano HG200, 11-36, 9 speed
- Chain – KMC X9
- Pedal – Bontrager City pedals
Components:
- Saddle – Bontrager Sport Women’s
- Seatpost – Bontrager alloy, 27.2mm, 12mm offset, 330mm length
- Handlebar
- Size: S, M – Bontrager alloy, 31.8mm, 15mm rise, 600mm width
- Size: L – Bontrager alloy, 31.8mm, 15mm rise, 660mm width
- Grips – Bontrager Satellite
- Stem
- Size: S – Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
- Size: M, L – Bontrager alloy, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length
- Headset – 1-1/8” threadless, sealed cartridge bearings
- Brake – Tektro HD-R280 hydraulic disc, flat mount, 160mm rotor
Weight:
- Weight – M – 25.64 lbs / 11.63 kg
- Weight limit – This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
